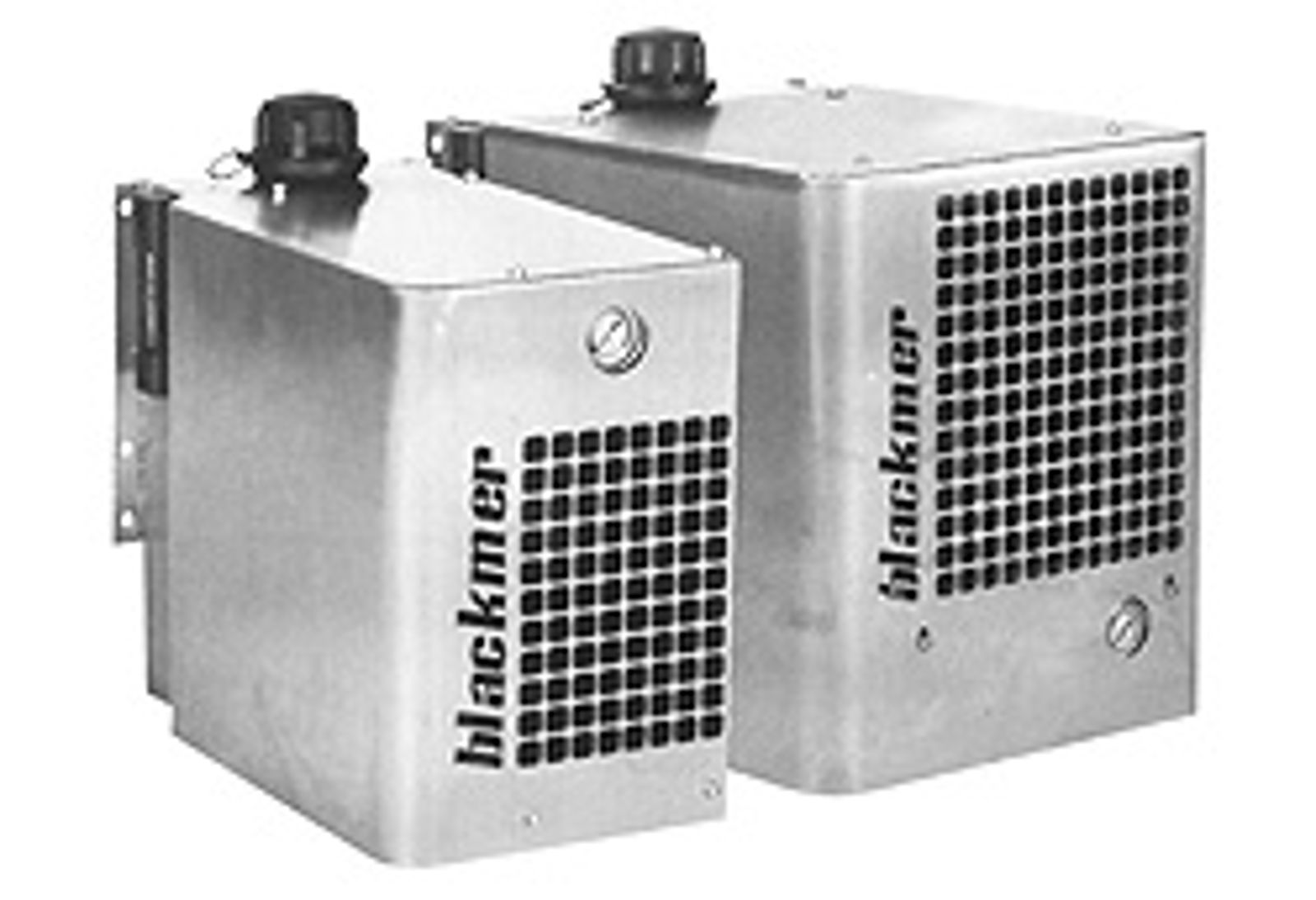

Hydrive 2010 | |
Oil Flow Rate | 55 to 100 litres/minute |
Circuit Pressure | 50 to 300 bar |
Fan Speed | 2800 rpm |
Return Pressure | 1 to 5 bar |
Heat Dissipation | 10 Kw for 40 degrees C temperature rise |
Fan Motor Flow | 5.5 litres/minute |
Weight (dry) | 24 Kg |
Oil Tank Capacity | 10 litres |
Hydrive 2020 | |
Oil Flow Rate | 55 to 190 litres/minute |
Circuit Pressure | 50 to 300 bar |
Fan Speed | 2800 rpm |
Return Pressure | 1 to 5 bar |
Heat Dissipation | 20 Kw for 40 degrees C temperature rise |
Fan Motor Flow | 8.8 litres/minute |
Weight (dry) | 35 Kg |
Oil Tank Capacity | 17 litres |
